交換兩條bondwire的落點

前一篇的分散bondwires的落點地script無法很好處理兩排die pad bondwire問題。可以透過以下script來交換bondwire的落點以解決bondwire空中交錯的問題。將其設為熱鍵，可以簡化操作。

import ScriptEnv
ScriptEnv.Initialize("Ansoft.ElectronicsDesktop")
oDesktop.RestoreWindow()
oDesktop.ClearMessages("", "", 2)
oProject = oDesktop.GetActiveProject()
oDesign = oProject.GetActiveDesign()
oLayout = oDesign.GetActiveEditor()

seles = oLayout.GetSelections()

A, B = seles[0:2]

Ax, Ay = oLayout.GetPropertyValue('BaseElementTab', A, 'Pt1').split(',')
Bx, By = oLayout.GetPropertyValue('BaseElementTab', B, 'Pt1').split(',')
oLayout.ChangeProperty(
    [
        "NAME:AllTabs",
        [
            "NAME:BaseElementTab",
            [
                "NAME:PropServers",
                A
            ],
            [
                "NAME:ChangedProps",
                [
                    "NAME:Pt1",
                    "X:="        , str(Bx) + 'mm',
                    "Y:="        , str(By) + 'mm'
                ]
            ]
        ]
    ])
oLayout.ChangeProperty(
    [
        "NAME:AllTabs",
        [
            "NAME:BaseElementTab",
            [
                "NAME:PropServers",
                B
            ],
            [
                "NAME:ChangedProps",
                [
                    "NAME:Pt1",
                    "X:="        , str(Ax) + 'mm',
                    "Y:="        , str(Ay) + 'mm'
                ]
            ]
        ]
    ])

oLayout.Select(seles[0:2])

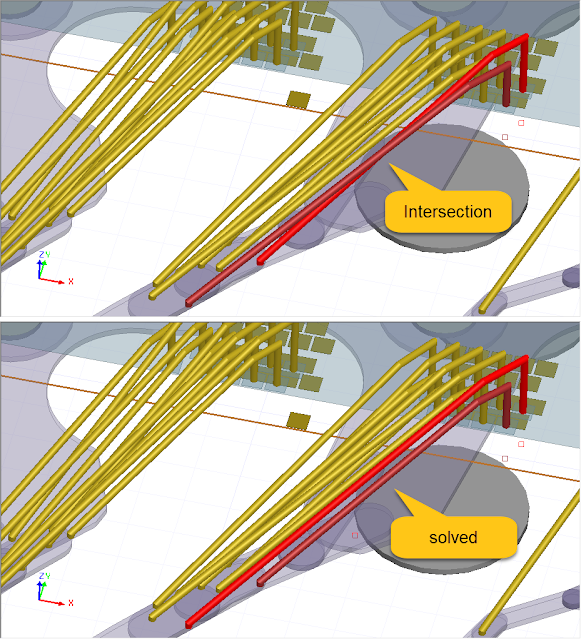

(圖一)切換前後排交叉 bondwires的落點來避免交叉
